Elitech PT-500 Wireless HVAC Pressure

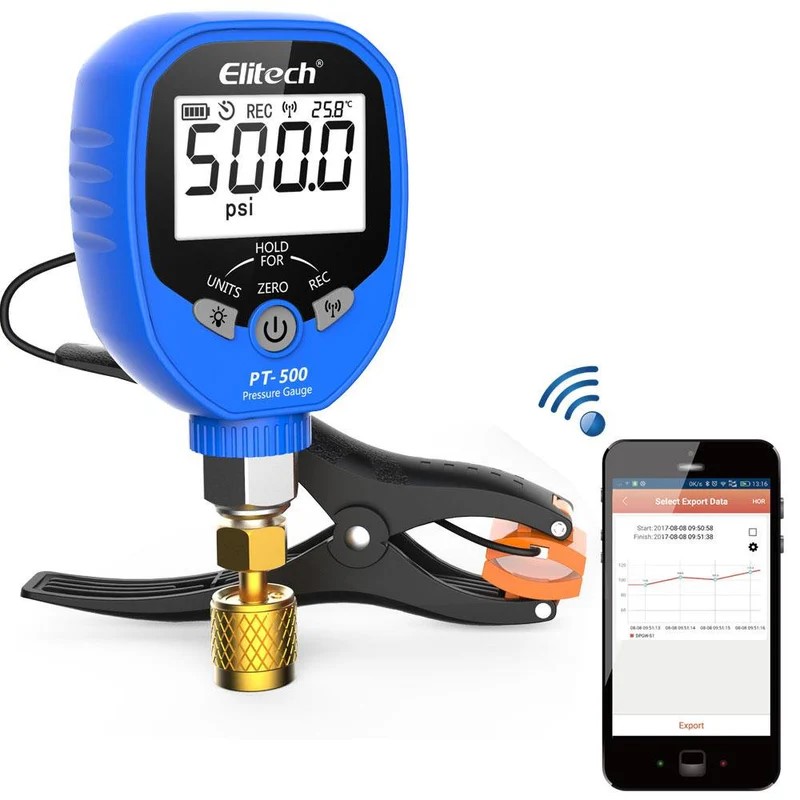

The Elitech PT-500 Wireless HVAC Pressure Gauge Temperature Clamp is a wireless pressure gauge specifically designed for HVAC (heating, ventilation, and air conditioning) systems. Designed for accurate pressure measurement, it includes a clamp-type temperature sensor, making monitoring cooling processes, maintenance, and troubleshooting easier. The device supports wireless connectivity to a mobile app, allowing users to remotely monitor and store measurement data.

Price:
Liên hệ

Specifications

ParameterValue
Pressure Range-14.5 ~ 500 psi (-0.1 ~ 3.45 MPa)
Pressure Accuracy±0.5% FS (Full Scale)
Temperature Range-40°C ~ 150°C (-40°F ~ 302°F)
Temperature Accuracy±1°C (±1.8°F)
Pressure Unitspsi, inHg, kg/cm², cmHg, bar, kPa, MPa
Wireless ConnectivityBluetooth (≤ 30 m)
Power Supply3 × AA batteries (up to 600 hours battery life)
DisplayDigital LCD
App ConnectivityElitech App (iOS/Android)
Operating Temperature-17.8°C ~ 60°C
Dimensions127 × 74 × 37 mm

Outstanding Features

  • Wireless Bluetooth connectivity: Monitor and record real-time data via mobile app.
  • Multifunctional: Measures HVAC system pressure, with a clamp-type temperature sensor for accurate pipe temperature measurement.
  • High accuracy: Provides detailed measurement data with low error, suitable for industrial air conditioning and refrigeration systems.
  • Convenient application: Store and analyze measured data on the app, easily export PDF and Excel reports.
  • Portable design: Compact and easy to carry, suitable for field maintenance technicians.
  • High pressure resistance: Supports measurements up to 800 psi, suitable for most modern air conditioning systems.

Tooling Document of Elitech PT-500
