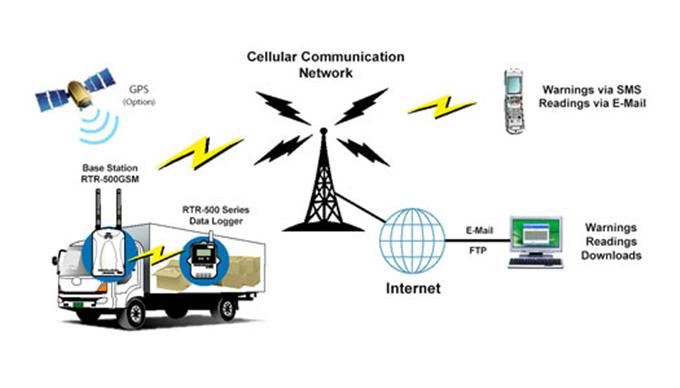

TandD Wireless System Using GSM, Wireless or Ethernet Communications
- Collects Measured Readings in Real-Time, On Demand or By Scheduled Download from RTR-500 Wireless Loggers through Network
- Each Data Collector Can Handle up to 20 RTR-500 Series Wireless Loggers
- System is Powered by Battery, AC Adaptor or External DC Power Source
- Alarm Notifications Are Sent to Email or Cellphone via SMS
- Data (Current or Logged) is Transmitted Over GPRS (Email or FTP) to Remote Server
- Accepts Remote Commands via SMS
- Maximum Communication Range of Collector to Logger is 150 Meters (500 ft)
- Repeaters (#RTR-500) Extend the Communication Range Increasing Distance
- Software is Included with Each RTR-500 Data Collector
A Complete System Requires a Base Collector (#RTR-500DC, #RTR-500GSM, #RTR-500NW or #RTR-500AW) and a RTR-500 Series Wireless Data Logger
| Wireless Communications | RF Power: 7mW Method: FCC Part 15 Section 247/IC RSS-210 Frequency Range: 902 to 928 MHz Range: 150 Meters (500 ft) - Direct and Unobstructed Speed: 2 Minutes for 16,000 Readings |
| Cellular Phone Communications | Network: GSM850 / GSM1900 (PTCRB Certified) SMS: Send Warning Reports, Remote Operation On/Off Data Transfer: GPRS (General Packet Radio Service) |
| Functions | Auto Downloading of Recorded Data Warning Monitoring Automatic Sending of Current Readings |
| Power | Battery-Powered 5 Volt AC Adaptor (#AD-0605) External Power (DC 8 to 34 Volt Source) |
| Current Consumption | At Most 2 Amps (5 Volts with GSM in Operation) |
| Communication Interface | with PC: USB with Remote Unit: Optical Communication |
| LED Indicators | Green: Power Orange: Error Red: Alarm |
| Battery | (4) AA Alkaline Batteries - User Replaceable |
| Battery Life | 10 Days of Continuous Use @10 Minute Sampling Interval (Not Using GPS) Note: Battery Life Dependant upon Frequency of Communication, Measuring Environment and Quality of Batteries |
| Operating Environment | Temperature: 10°C to 55°C (Batteries); -10°C to 55°C (External Powered) Humidity: 20 to 80% RH (No Dew Condensation) |
| Weight | 220 grams (7.76 oz.) - Includes Batteries |
| Dimensions | 9.6cm x 6.6cm x 3.9cm (3.78" x 2.60" x 1.54") Antenna Length: 10.9cm (4.29") |
